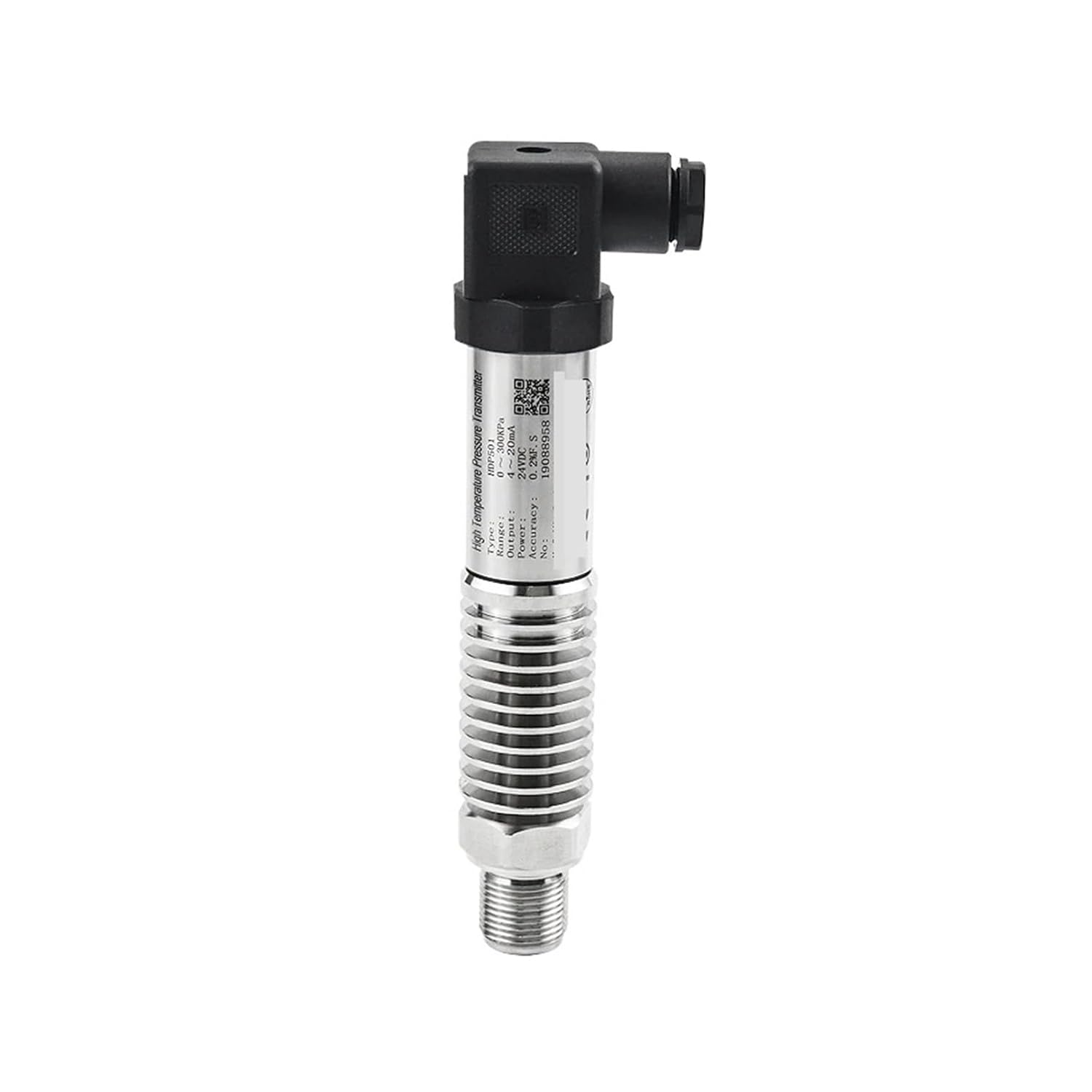

Steam Pressure Transducer 420ma High Temperature Pressure Sensor for Boiler Modbus Transmitter

Brief description:High Temperature Pressure Transmitter adopts imported thermost ability sensing element, make the transmitter work stability under 200.And it welds with cool lasing technology, there are cooling ribs between the pressure sensor chips and amplifier electrical circuit, it avoids the heat conduction efficiently. pressure sensitive core adopt high performance silicon piezo resistive pressure filling core. The internal ASIC converts the sensor millivolt signal into standard voltage, current or signal, which can be directly connected with computer interface card, control instrument, intelligent instrument or PLC. Current output modle can be used for distance transmission. It has small volume, light weight, all stainless steel sealing structure and can work incorrosive environment. The product is easy to installand has high anti-vibration and anti-impact performance. It is widely used in processes control, aviation, aerospace, automobile, equipment, HVAC and other fields.Selection Table:3.3v output automotive air boiler room electronic hydraulic water pipe pressure sensorDetails:If your temperature over 300°, then can add Heat sink. See picture below.1 circle can resist 50 degrees.Mainly technical parameters:ModelHDP501Power supply24VDCOutput signal4~20mA,1~5V,0~10V,RS485Measuring range-0.1...0...100MpaCompensation temperature-10~70Medium temperature-40~300Environment temperature-40~85Measuring mediaGaseous, Liquid, WaterPressure typeGauge pressure, Absolute pressureAccuracy0.1%F.S, 0.25%F.S, 0.5%F.S (standard)Zero tempe drift±0.03%F.S/Sensitivity temperature drift±0.03%F.S/Overload200%F.SLong-term stability0.2%F.S/yearInherent 5kHz~650kHzProtection gradeIP65High Temperature type High temperature digital display TypeModel Number : HDP501Max Measuring Range : 400 Bar & AboveOrigin : Mainland China

• Accurate & Stable Performance:Boasts 0.1%F.S accuracy, with low zero and sensitivity temperature drift for reliable, consistent measurements.
• Compact & Durable Design:Features an all-stainless steel sealing structure, resistant , and has a small, lightweight build for easy installation.
• Multiple Output Signal Options:Offers 4~20mA, 1~5V, 0~10V, and RS485 output signals, enabling versatile connectivity with control instruments and PLCs.
• Versatile Pressure Range:Measures pressure from -0.1 to 100Mpa, making it suitable for various industrial applications with diverse pressure requirements.
• Steam Presser Transmitter|Steam Presser Sensor|High Temperature Resilience:Operates stably up to 200℃ with a thermostable sensor element, ensuring reliable performance in high-temperature environments.
