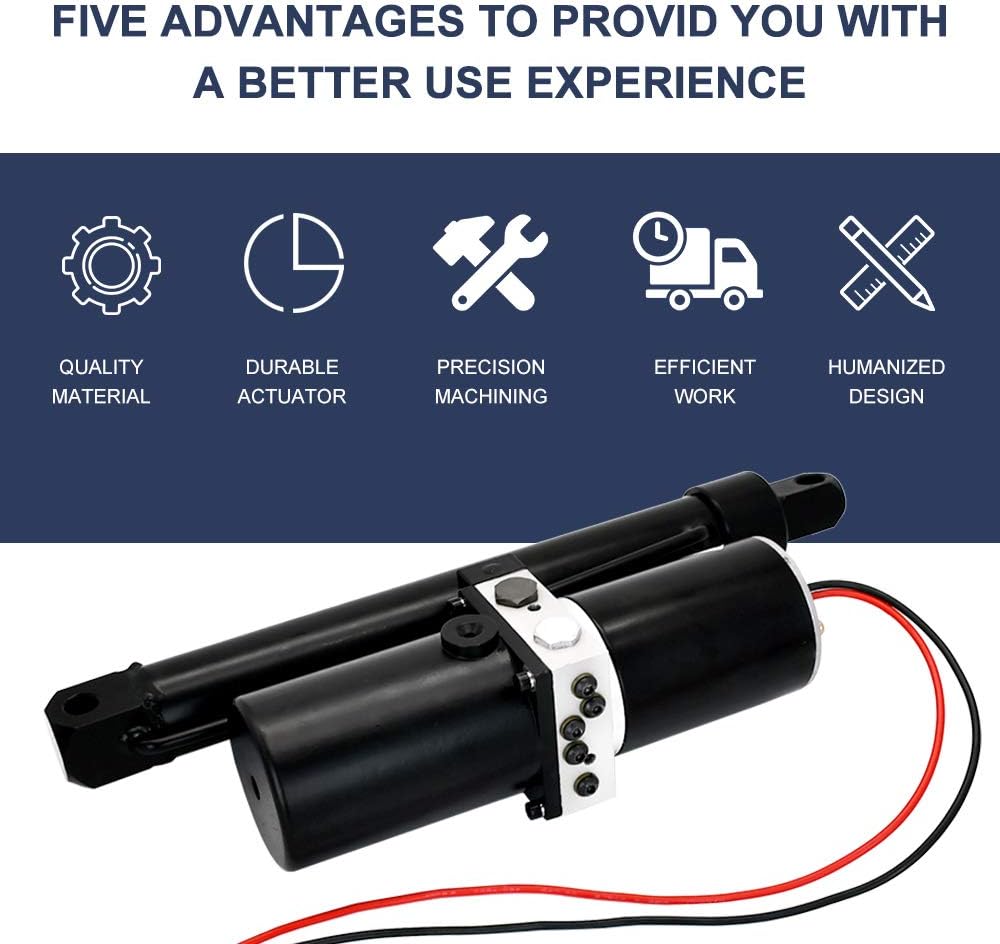

Heavy Duty (1700 lbs/10 inch/300W) Hydraulic Linear Actuator，Waterproof IP 65, DC 12V High Force Actuator for Farm Garden Equipment Utility Vehicle Industrial Usage
Product details
| Management number | 219314954 | Release Date | 2026/05/03 | List Price | US$90.00 | Model Number | 219314954 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
✦Specification:Input Voltage(DC12V)Hydraulic Motor(300W;3000r/m)Max Push Load on Straight(8000N/1700LBS/770KG)Free Load Speed(0.6 inch/s)(9.8 inch/250 mm)Cylinder Inner Diameter(1.38/35mm)The Thick of Telescopic Rod(0.7/18mm)Operation Temperature(-26 ° C ~ 65 ° C)Protection Class( IP65)Material(Aluminum)Certification( CE) ✦Application:The Linear Actuator Is Widely Used In A Number Of Industries, Such As Electric Power, Machinery, Metallurgy, Mine, Petroleum, Chemical Industry, Transportation, Lifting, Construction, Food And Feed Processing, Etc.
- 【Parameter】Input Voltage: DC 12V; Hydraulic Motor: 300W&3000r/m; Max Push Load on Straight: 8000N/1700LBS/770KG; Free Load Speed: 13mm/s; Oil pump displacement 0.3cc/r; Working stroke : 250mm.
- 【Performance】Use Stainless Steel Telescopic Tube, Trapezoidal Screw Drive System, With Mechanical Self-locking Force, Using Overload Protection Clutch For Stroke Middle And End Protection, Overheating, Overload Protection Device, Maintenance-free And Durable, Direct Push Maximum Push Load 10500N.
- 【Features】Features: Aluminum Alloy Housing, IP65 Rated Protection Sealed Against Dust, Water, And Corrosion Suitable For Outdoor Use. The Internal Limit Switch Automatically Switches Off When It Reaches In the Case Of The Motor Idling.
- 【Application】Widely Used in Farm/Garden Equipment, Utility Vechicle, Industrial Automation Equipment, Boat, Snow Blower, Lifting Platform, Adjustable Beds, Wheelchairs, Industry Mechanical Instruments, Furniture, Sporting Equipment, Etc.
- 【Rigorous Testing】Each product undergoes rigorous testing to ensure exceptional quality and reliable performance, guaranteeing the best possible experience for our customers.
| Size | 10 inch |
|---|---|
| Color Name | Black |
| Material Type | aluminum |
| Item model number | 1700lbs/8000N |
| Package Dimensions | 16.9 x 6.7 x 4.5 inches |
