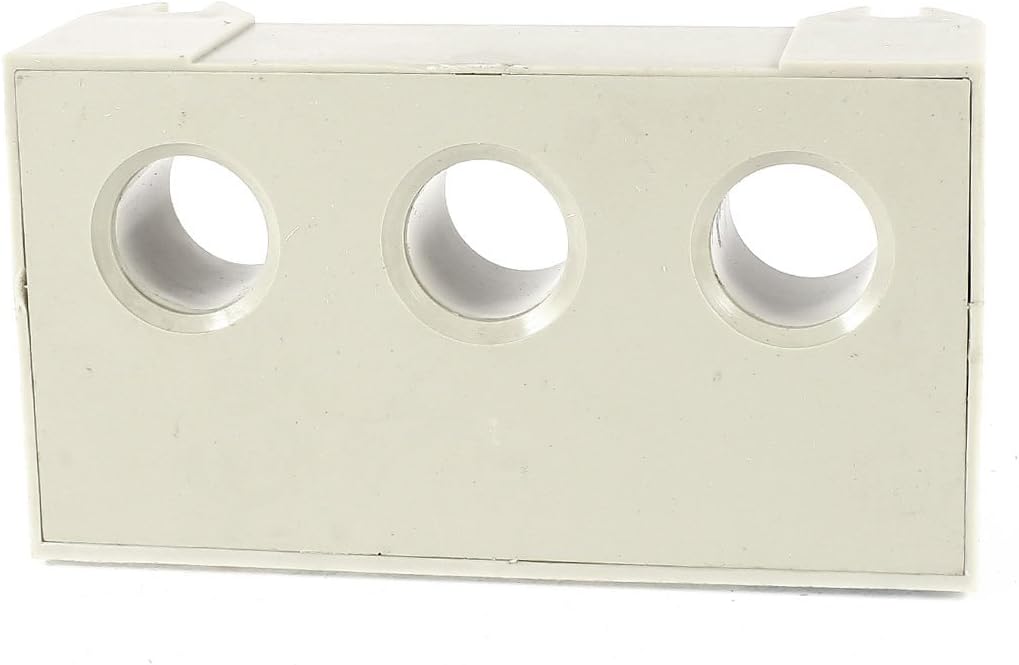

CDS-11 3 Phase 150-300A Adjustable Current Motor Circuit Protector
Product details
| Management number | 221442218 | Release Date | 2026/05/03 | List Price | US$14.59 | Model Number | 221442218 | ||
|---|---|---|---|---|---|---|---|---|---|
| Category | |||||||||
relayCDS-11 3 Phase 150-300A Adjustable Current Motor Circuit ProtectorPass the three-phase power line between the contactor and motor through three holes of the protector of random phase sequence according to the secondary typical wiring diagram in the instruction and put the protector's terminal in series into the secondary loop of the AC contactor.If the protector is used for automatic control circuit and would be restarted after use, cut off the control loop to reset the output interface of the protector. Otherwise do not restart.Do not open the case of the protector or touch internal live part and terminal of the protector to avoid electric shock. Terminal shall be firmly connected with wires, and the length of exposed part of the wire shall be short enough to avoid short circuit with adjacent terminal, otherwise it may result in danger.
- relay
- Product Name : Motor Protector;Type : CDS-11;Reset Time : 60 ± 10s;Work Mode : Uninterrupted Work Mode
- Applicable Voltage : AC 24V - 380V / 45 ~ 60 Hz;Current Adjustment Scope : 150-300A;Applicable Motor Power : 64 - 160KW
- Wire Hole Dia. : 20mm/0.79";Control Current of Output Interface : 1A/380Vac;Environment Temperature : -10C - +50C
- < =90%;Atmospheric Pressure : 80Kpa-110Kpa;Altitude : no more than 200m
- Total Size : 12.4 x 6.8 x 4.4cm/4.9" x 2.7 " x 1.7"(L*W*H);Weight : 196g;Package Content : 1 x Motor Protector1 x Product Introduction
| Item Weight | 15.9 ounces |
|---|---|
| Manufacturer | CVCGZLBXN |
| Item model number | CVCGZLBXN |
| Batteries required | No |
| Package Dimensions | 0.39 x 0.39 x 0.39 inches |
